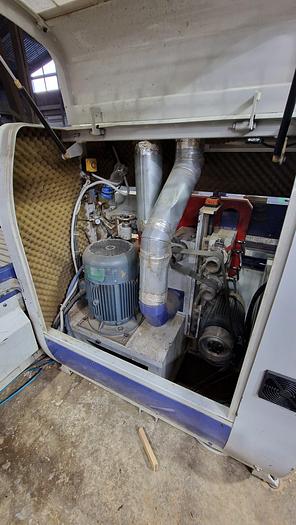

Finger jointing line

1. Dimensions of workpieces entering the line, mm:

thickness, min 20

max 75

width, max 150

length, min 150

max 900

Automatic tenoning machine MXB 3515B-A:

2. Dimensions of the carriage working table *), mm 800 x 800

3. Height of workpiece processing, max. mm 150

4. Width of the workpiece package, max. mm 800

5. Feed force of the working table, maximum, kg 840

6. Spindle speed, rpm:

- saw 2840

- milling 6750

7. Scoring saw dimensions, mm 110 x 2.2 x 30T

8. Scoring saw landing diameter, mm 25.4

9. Miter saw dimensions, mm 255 x 4 x 80T x 50

10. Spindle landing diameter of the miter saw, mm 30

11. Crusher cutter dimensions, mm 238 X T20 X S30 X 12T

12. Cutter diameter **), mm 160 x 4.0 x 70 160 x 10 x 70

13. Milling spindle diameter landing, mm 50

Automatic tenoning machine MXB 3515 B-B:

14. Dimensions of the carriage working table, mm 630 x 800

15. Height of workpiece processing, max, mm 150

16. Width of a package of workpieces, max, mm 590

17. Feed force of the working table, max, kg 840

18. Spindle speed, rpm:

- saw and scoring 2840

- milling 6750

19. Dimensions of the scoring saw, mm

- upper 110 x 2.2 x 30T

- lower 160 x 2.2 x 60T

20. Landing diameter of the scoring saw, mm 25.4

21. Dimensions of the miter saw, mm 255 x 4 x 80T x 50

22. Spindle diameter of miter saw, mm 30
